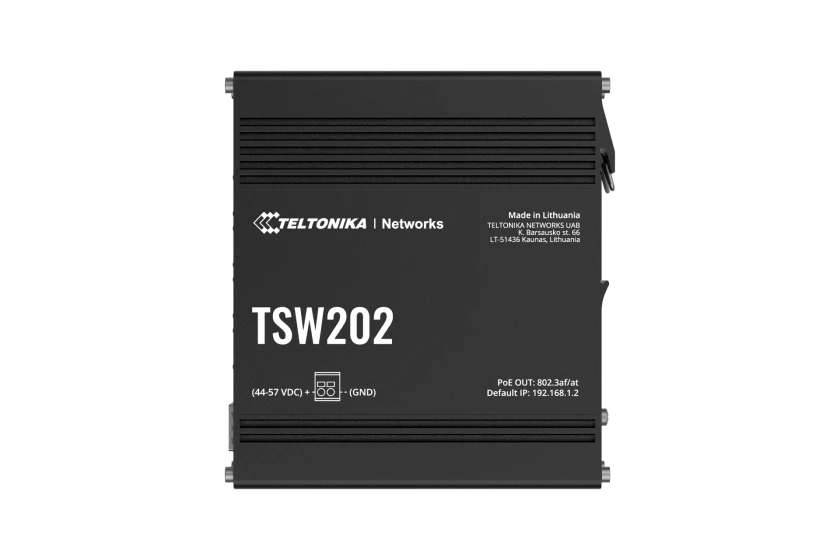

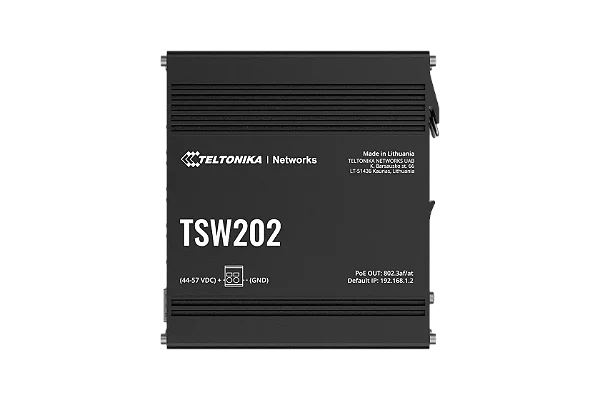

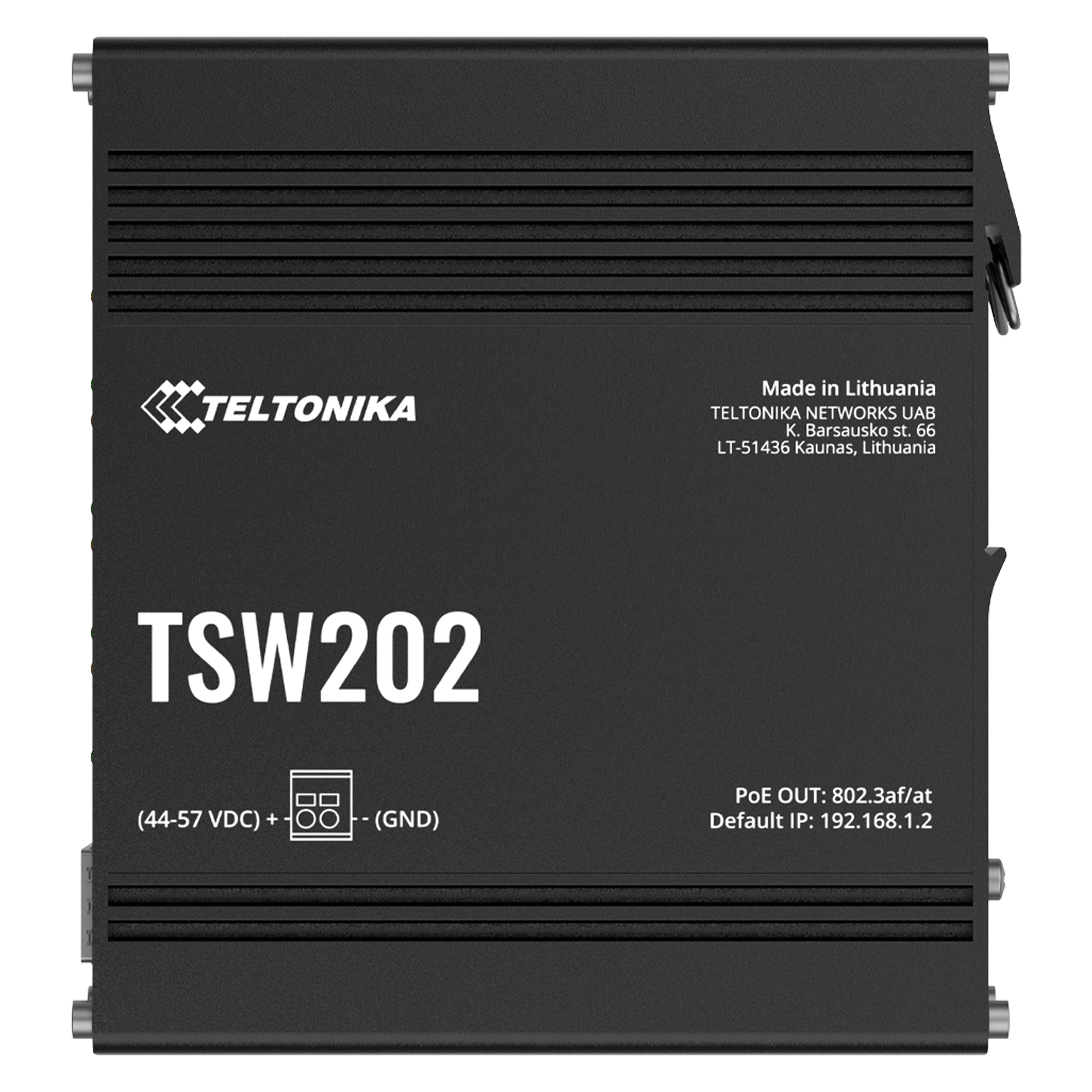

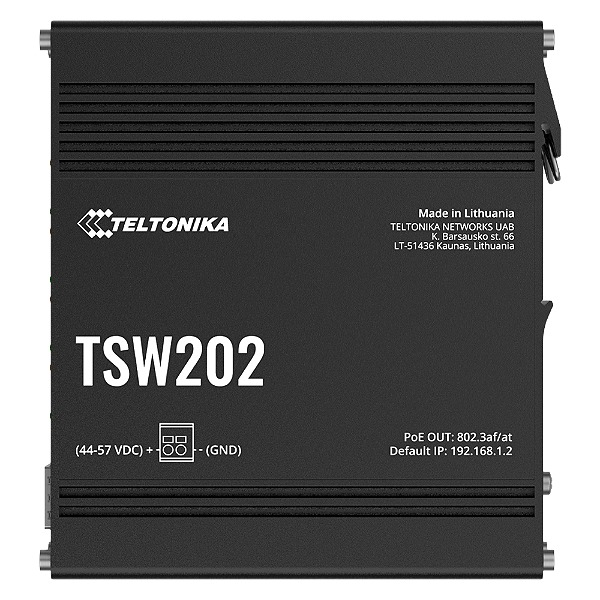

TSW202 Switch Industrial Gerenciável 8x Gigabit / POE+ & 2x SFP Teltonika

Ethernet
ETH

Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover

Fibre

2 x SFP ports

IEEE 802.3 series standards

802.3i, 802.3u, 802.3ab, 802.3x, 802.3z

INDUSTRIAL PROTOCOLS
Profinet

Profinet Class B conformance (available with optional order code)

POE OUT
PoE ports

Port 1 - 8

PoE standards

802.3af and 802.3at Alternative A (Batch 15 and all batches from Batch 17 onward)

802.3af and 802.3at Alternative B (Batches 1–14 and Batch 16)

PoE Max Power per Port (at PSE)

30 W

Total PoE Power Budget (at PSE)

240 W

Maximum Ethernet cable length

100 m

Services
EtherNet/IP

Yes

SNMP V2, V3

Yes

LLDP

Yes

Network Management

802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN

Network
MRP

MRP client role, MRP manager role

L2 features

Loop protection, Forwarding table, VLAN, STP/RSTP

DHCP

DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards

Port Settings

Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring

L3 Features

Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

Security
Authentication

PAM — preshared key, Radius & TACACS+, IP & login attempts block

QoS
QOS

Port priority, DSCP priority, 802.1p priority, TOS

Scheduling method

SP/WFQ/WRR

Bandwidth control

Rate limiting, storm control

Traffic Shaper

Port-based shaping

Diagnostics
Tools

Cable diagnostic, ping, traceroute, nslookup

Ping reboot

Capability to restart PoE in a specific port

API
Teltonika Networks Web API (beta) support

Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

System Characteristics
RAM

128MB, DDR3

FLASH storage

16 MB serial flash

Firmware / Configuration
WEB UI

Update FW from file, check FW on server, configuration profiles, configuration backup

FOTA

Update FW

RMS

Update FW/configuration for multiple devices at once

Keep settings

Update FW without losing current configuration

FIRMWARE CUSTOMISATION
Operating system

TSWOS (OpenWrt based Linux OS)

Supported languages

Busybox shell, Lua, C, C++

Development tools

SDK package with build environment provided

Performance Specifications
Bandwidth (Non-blocking)

20 Gbps

Forwarding rate

14.88 Mpps

Packet buffer

512 KB

MAC address table size

8K entries

Jumbo frame support

10000 bytes

Power
Connector

2-pin industrial DC power socket

Input voltage range

7 – 57 VDC

PoE-Out input voltage range

44 – 57 VDC

Power consumption

Idle: < 3 W / Max: 8 W / PoE Max: 248 W

Physical Interfaces
Ethernet

8 x RJ45 ports, 10/100/1000 Mbps

Fibre

2 x SFP ports

Status LEDs

1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs

Power

1 x 2-pin industrial DC power socket

Reset

Software reset button

Other


1 x Grounding screw

Physical Specification
Casing material

Anodized aluminum housing and panels

Dimensions (W x H x D)

132 x 44.2 x 122.2 mm

Weight

610 g

Mounting options

Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating Environment
Operating temperature

-40 °C to 75 °C

Operating humidity

5% to 95% non-condensing

Ingress Protection Rating

IP30

Regulatory & Type Approvals
Regulatory

CE, UKCA, RCM, ANRT, FCC, IC, CB, NBTC, PROFINET, CITC, RoHS, REACH, WEEE, SDPPI (POSTEL), JATE, Kenya, ICASA, Giteki`, UL Safety

EMC Emissions & Immunity
Standards

EN 55032:2015 + A11:2020 + A1:2020

EN 55035:2017 + A11:2020

EN IEC 61000-3-2: 2019 + A1:2021

EN 61000-3-3: 2013 + A1:2019 + A2:2021

ESD

EN 61000-4-2:2009

Radiated Immunity

EN IEC 61000-4-3:2020

EFT

EN 61000-4-4:2012

Surge Immunity (AC Mains Power Port)

EN 61000-4-5:2014 + A1:2017

CS

EN 61000-4-6:2014

DIP

EN 61000-4-11:2020

Safety
Standards

CE: EN IEC 62368-1:2020 + A11:2020

RCM: AS/NZS 62368.1:2022

CB: IEC 62368-1:2018

Safety (Ordinary Locations)
Standards

UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)
