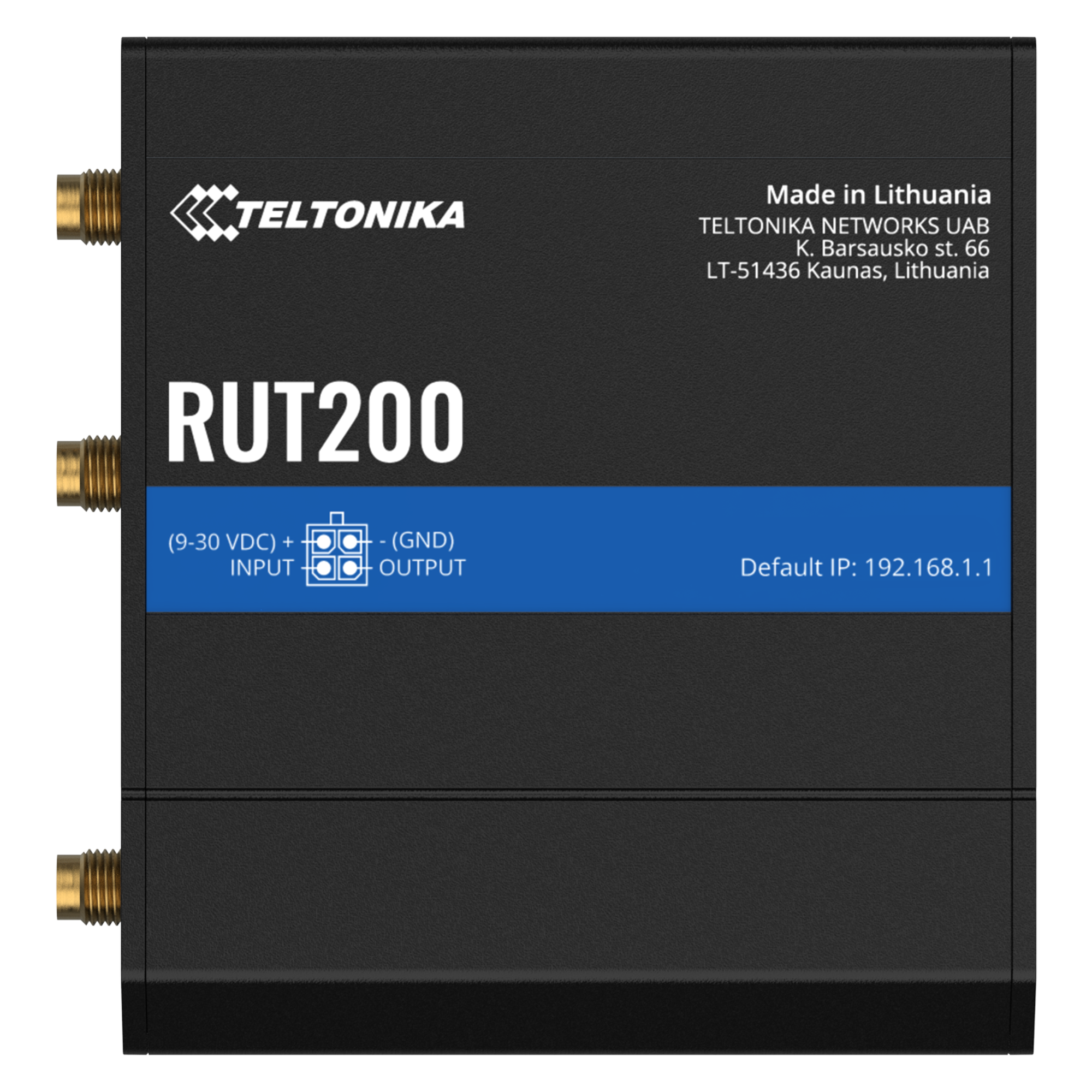

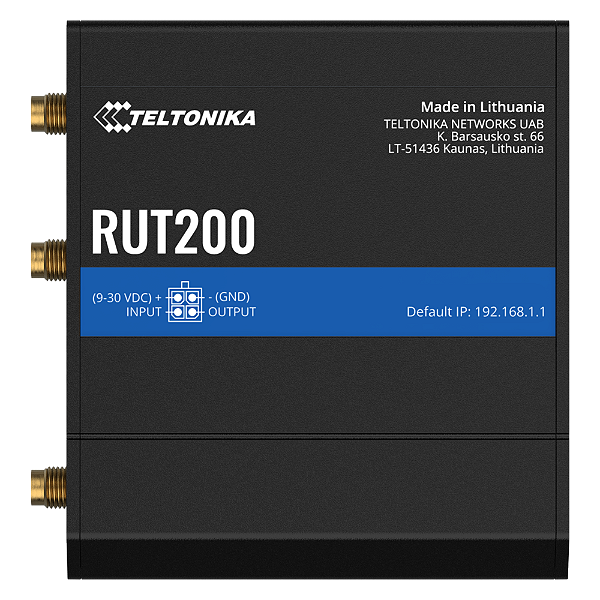

RUT200 Roteador Celular Industrial 4G WI-FI Access Point 2x Ethernet Redund. c/WANFAILOVER Teltonika

MOBILE
Mobile module: 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps

3GPP Release: Release 9

Status: IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD: Supports sending and reading Unstructured Supplementary Service Data messages

Black/White list: Operator black/white list (by country or separate operators)

Multiple PDN: Possibility to use different PDNs for multiple network access and services

Band management: Band lock, Used band status display

APN: Auto APN

Bridge: Direct connection (bridge) between mobile ISP and device on LAN

Passthrough: Router assigns its mobile WAN IP address to another device on LAN

WIRELESS
Wireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)

Wi-Fi security: WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation

SSID/ESSID: SSID stealth mode and access control based on MAC address

Wi-Fi users: Up to 50 simultaneous connections

Wireless Connectivity Features: Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

Wireless MAC filter: Whitelist, blacklist

Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information.

NETWORK
Hotspot: Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes

Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)

VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall: Port forward, traffic rules, custom rules

Firewall status page: View all your Firewall statistics, rules, and rule counters

Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Network topology: Visual representation of your network, showing which devices are connected to which other devices

DHCP: Static and dynamic IP allocation, DHCP Relay

QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS: Supported >25 service providers, others can be configured manually

Network backup: Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Load balancing: Balance Internet traffic over multiple WAN connections

SSHFS: Possibility to mount remote file system via SSH protocol

ETHERNET
WAN: 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

LAN: 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

SECURITY
Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block

Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN: Port and tag-based VLAN separation

Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number

WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control: Flexible access control of SSH, Web interface, CLI and Telnet

VPN
OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods

Ipsec: IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE: GRE tunnel, GRE tunnel over IPsec support

PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

DMVPN: Method of building scalable IPsec VPNs

SSTP: SSTP client instance support

ZeroTier: ZeroTier VPN client support

WireGuard: WireGuard VPN client and server support

Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

OPC UA
Supported modes: Client, Server

Supported connection types: TCP

MODBUS
Supported modes: Server, Client

Supported connection types: TCP

Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER
Protocol: HTTP(S), MQTT, Azure MQTT, Kinesis

Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server

MQTT GATEWAY
MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3
Supported modes: TCP Master, DNP3 Outstation

DLMS
DLMS Support: DLMS - standard protocol for utility meter data exchange

MONITORING & MANAGEMENT
WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log

FOTA: Firmware update from server, automatic notification

SSH: SSH (v1, v2)

SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET

Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT: MQTT Broker, MQTT publisher

SNMP: SNMP (v1, v2, v3), SNMP Trap

JSON-RPC: Management API over HTTP/HTTPS

RMS: Teltonika Remote Management System (RMS)

IOT PLATFORMS
Cloud of Things: Allows monitoring of: Device data, Mobile data, Network info, Availability

ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength

Azure IoT Hub: Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICS
CPU: Mediatek, 580 MHz, MIPS 24KEc

RAM: 128 MB, DDR2

FLASH storage: 16 MB, SPI Flash

INPUT / OUTPUT
Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA

Events: Email, RMS, SMS

I/O juggler: Allows to set certain I/O conditions to initiate event

POWER
Connector: 4-pin industrial DC power socket

Input voltage range: 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max

PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

Power consumption: < 6.5 W Max

PHYSICAL INTERFACES
Ethernet: 2 x RJ45 ports, 10/100 Mbps

I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector

SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder

Antennas: 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors

Reset: Reboot/User default reset/Factory reset button

PHYSICAL SPECIFICATION
Casing material: Aluminium housing, plastic panels

Dimensions (W x H x D): 83 x 25 x 74 mm

Weight: 125 g

OPERATING ENVIRONMENT
Operating temperature: -40 °C to 75 °C

Operating humidity: 10% to 90% non-condensing

Ingress Protection Rating: IP30

REGULATORY & TYPE APPROVALS
Regulatory: CE, UKCA, RCM, EAC, Anatel, ANRT, Kenya, ICASA, NCC, ETA-WPC, SIRIM, IMDA, NTC, NBTC, MTC NOM, E-mark, CB, RoHS, REACH, R118
