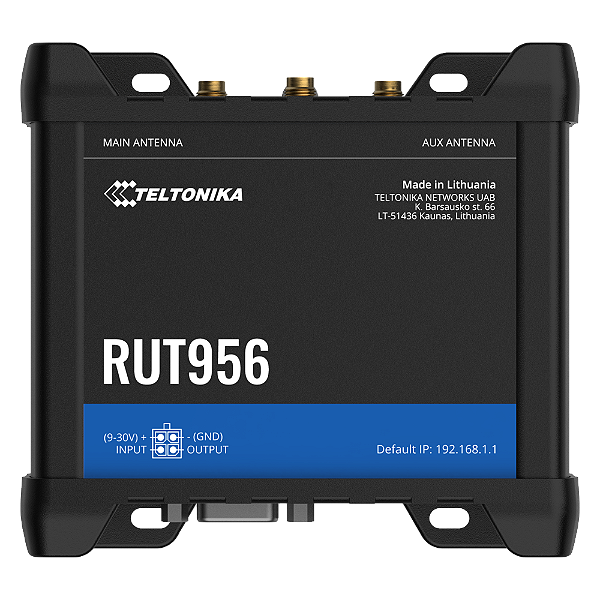

RUT956 Roteador Celular Industrial 4G WI-FI Access Point 4x Ethernet GPS RS232/485 Teltonika





SAIBA MAIS SOBRE O RUT956



Features

Mobile

• Mobile module

4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps

• 3GPP Release

Release 11

• SIM switch

2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

• Status

IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

• SMS

SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

• USSD

Supports sending and reading Unstructured Supplementary Service Data messages

• Black/White list

Operator black/white list (by country or separate operators)

• Multiple PDN

Possibility to use different PDNs for multiple network access and services

• Band management

Band lock, Used band status display

• SIM PIN code management

SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

• APN

Auto APN

• Bridge

Direct connection (bridge) between mobile ISP and device on LAN

• Passthrough

Router assigns its mobile WAN IP address to another device on LAN

Wireless

• Wireless mode

802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

• Wi-Fi security

WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

• SSID/ESSID

SSID stealth mode and access control based on MAC address

• Wi-Fi users

Up to 100 simultaneous connections

• Wireless Connectivity Features

Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

• Wireless MAC filter

Whitelist, blacklist

Network

• Hotspot

Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

• Routing

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

• Network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)

• VoIP passthrough support

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

• Connection monitoring

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

• Firewall

Port forward, traffic rules, custom rules, TTL target customization

• DHCP

Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

• QoS / Smart Queue Management (SQM)

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

• DDNS

Supported >25 service providers, others can be configured manually

• DNS over HTTPS

DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

• Network backup

Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

• Load balancing

Balance Internet traffic over multiple WAN connections

• SSHFS

Possibility to mount remote file system via SSH protocol

• Traffic Management

Real-time monitoring, wireless signal charts, traffic usage history

Ethernet

• WAN

1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

• LAN

3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Security

• Authentication

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

• Firewall

Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

• Attack prevention

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

• VLAN

Port and tag-based VLAN separation

• Mobile quota control

Mobile data limit, customizable period, start time, warning limit, phone number

• WEB filter

Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

• Access control

Flexible access control of SSH, Web interface, CLI and Telnet

• SSL certificate generation

Let's encrypt support

VPN

• OpenVPN

Multiple clients and a server can run simultaneously, 27 encryption methods

• OpenVPN Encryption

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

• IPsec

XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

• GRE

GRE tunnel, GRE tunnel over IPsec support

• PPTP, L2TP

Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

• Stunnel

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

• DMVPN

Method of building scalable IPsec VPNs

• SSTP

SSTP client instance support

• ZeroTier

ZeroTier VPN client support

• WireGuard

WireGuard VPN client and server support

• Tinc

Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

BACNET

• Supported modes

Router

• Supported connection types

RS485, TCP

OPC UA

• Supported modes

Client, Server

• Supported connection types

TCP

MODBUS

• Supported modes

Server, Client

• Supported connection types

RTU (RS232, RS485), TCP, USB

• Custom registers

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

• Supported data formats

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

• Protocol

HTTP(S), MQTT, Azure MQTT, Kinesis

MQTT Gateway

• Modbus MQTT Gateway

Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

• Supported modes

Station, Outstation

• Supported connection types

RS232, RS485, TCP, USB

DLMS

• DLMS Support

DLMS - standard protocol for utility meter data exchange

• Supported modes

Client

• Supported connection types

RS232, RS485, TCP

API

• Teltonika Networks Web API (beta) support

Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

• WEB UI

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

• FOTA

Firmware update from server, automatic notification

• SSH

SSH (v1, v2)

• SMS

SMS status, SMS configuration, send/read SMS via HTTP POST/GET

• Call

Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

• TR-069

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

• MQTT

MQTT Broker, MQTT publisher

• SNMP

SNMP (v1, v2, v3), SNMP Trap, Brute force protection

• JSON-RPC

Management API over HTTP/HTTPS

• RMS

Teltonika Remote Management System (RMS)

IoT Platforms

• ThingWorx

Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

• Cumulocity - Cloud of Things

Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions.

• Azure IoT Hub

Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

System Characteristics

• CPU

Mediatek, 580 MHz, MIPS 24KEc

• RAM

128 MB, DDR2

• FLASH storage

16 MB, SPI Flash

Firmware / Configuration

• WEB UI

Update FW from file, check FW on server, configuration profiles, configuration backup

• FOTA

Update FW

• RMS

Update FW/configuration for multiple devices at once

• Keep settings

Update FW without losing current configuration

• Factory settings reset

A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

• Operating system

RutOS (OpenWrt based Linux OS)

• Supported languages

Busybox shell, Lua, C, C++

• Development tools

SDK package with build environment provided

• GPL customization

You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

• Package Manager

The Package Manager is a service used to install additional software on the device

Location Tracking

• GNSS

GPS, GLONASS, BeiDou, Galileo and QZSS

• Coordinates

GNSS coordinates via WebUI, SMS, TAVL, RMS

• NMEA

NMEA 0183

• NTRIP

NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

• Server software

Supported server software TAVL, RMS

• Geofencing

Configurable multiple geofence zones

Serial

• RS232

DB9 connector, RS232 (with RTS, CTS flow control)

• RS485

RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate

• Serial functions

Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client

USB

• Data rate

USB 2.0

• Applications

Samba share, USB-to-serial

• External devices

Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

• Storage formats

FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

• Input

1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)

• Output

1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)

• Events

Email, RMS, SMS

• I/O juggler

Allows to set certain I/O conditions to initiate event

SD CARD

• Physical size

Micro SD (internal)

• Applications

Samba share, Storage Memory Expansion, DLNA

• Capacity

Up to 64 GB

• Storage Formats

FAT32, NTFS, ext2, ext3, ext4

Power

• Connector

4-pin industrial DC power socket

• Input voltage range

9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max

• PoE (passive)

Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

• Power consumption

< 2 W idle, < 7 W Max

Physical Interfaces

• Ethernet

4 x RJ45 ports, 10/100 Mbps

• I/O’s

2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)

• Status LEDs

1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power

• SIM

2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)

• Power

1 x 4-pin power connector

• Input/output

1 x 10-pin industrial socket for inputs/outputs

• Antennas

2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS

• USB

1 x USB A port for external devices

• RS232

1 x DB9 socket

• RS485

1 x 6-pin industrial socket

• Reset

Reboot/User default reset/Factory reset button

Physical Specification

• Casing material

Aluminium housing, plastic panels

• Dimensions (W x H x D)

110 x 50 x 100 mm

• Weight

287 g

• Mounting options

DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

• Operating temperature

-40 °C to 75 °C

• Operating humidity

10% to 90% non-condensing

• Ingress Protection Rating

IP30

Regulatory & Type Approvals

• Regulatory

CE, UKCA, ANRT, Kenya, CITC, ICASA, FCC, IC, PTCRB, Anatel, RCM, Giteki, IMDA, ECE R118, E-mark, UL/CSA Safety, CB, RoHS, REACH, NCC, C1D2

• Operator

AT&T, Verizon, T-Mobile

EMC Emissions & Immunity

• Standards

EN 55032:2015 + A11:2020

EN 55035:2017 + A11:2020

EN IEC 61000-3-2:2019 + A1:2021

EN 61000-3-3:2013 + A1:2019

EN 301 489-1 V2.2.3

EN 301 489-17 V3.2.4

EN 301 489-19 V2.1.1

EN 301 489-52 V1.2.1

• ESD

EN 61000-4-2:2009

• Radiated Immunity

EN 61000-4-3:2020

• EFT

EN 61000-4-4:2012

• Surge Immunity (AC Mains Power Port)

EN 61000-4-5:2014 + A1:2017

• CS

EN 61000-4-6:2014

• DIP

EN 61000-4-11:2020

RF

• Standards

EN 300 328 V2.2.2

EN 301 511 V12.5.1

EN 301 908-1 V15.2.1

EN 301 908-2 V13.1.1

EN 301 908-13 V13.2.1

EN 303 413 V1.1.1

Safety (Ordinary Locations)

• Standards

CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017

RCM: AS/NZS 62368.1:2022

CB: IEC 62368-1:2018

UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

Safety (Hazardous Locations)

• Standards

UL/CSA Safety: UL 121201, 9th Ed., Rev. April 1, 2021, CAN/CSA C22.2 No. 213, 3rd Ed. April 2021

• Hazardous Environments

Class I, Division 2, Groups A, B, C, D

Class I, Zone 2, Group IIC

-40°C ≤ Ta ≤ 75°C, T4, IP30
