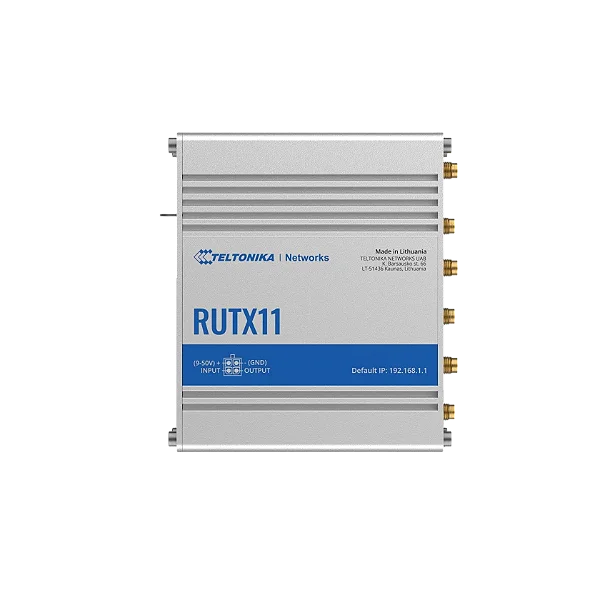

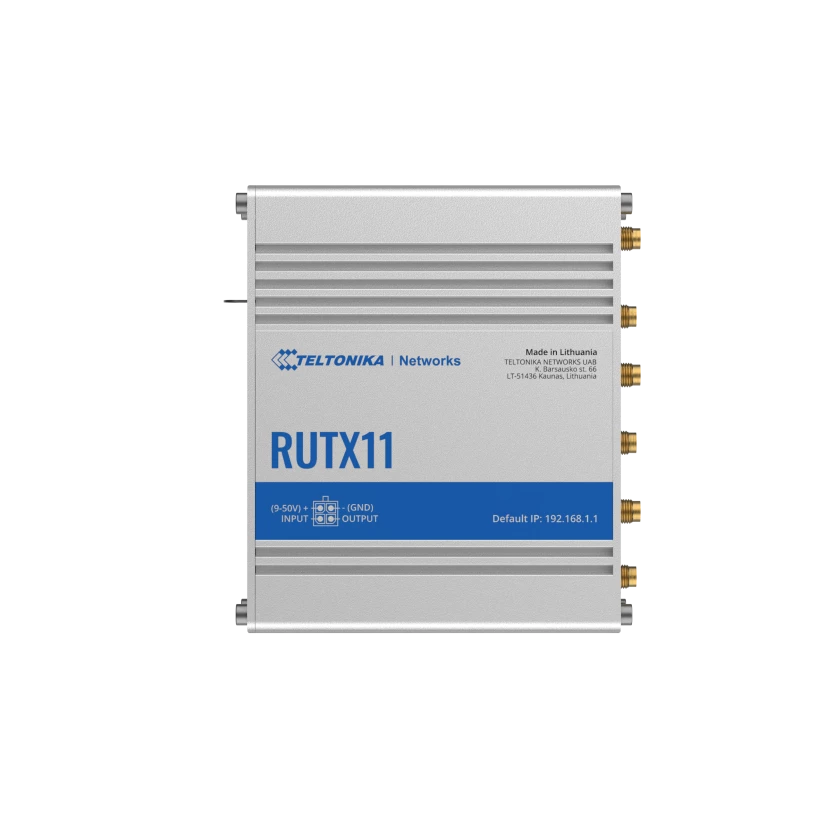

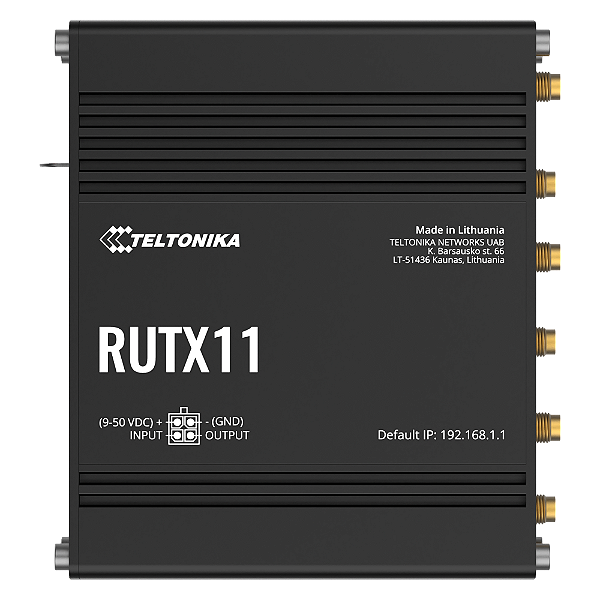

RUTX11 Roteador Celular Industrial 4G WI-FI Bluetooth 4x Ethernet RS232/485 Teltonika

Features

Downloads

Ordering

Support

Mobile

Mobile module



4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps



3GPP Release



Release 12



SIM switch



2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection



Status



IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC



SMS



SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP



USSD



Supports sending and reading Unstructured Supplementary Service Data messages



Black/White list



Operator black/white list (by country or separate operators)



Multiple PDN



Possibility to use different PDNs for multiple network access and services



Band management



Band lock, Used band status display



SIM idle protection service



When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then



SIM PIN code management



SIM PIN code management enables setting, changing, or disabling the SIM card's PIN



APN



Auto APN



Bridge



Direct connection (bridge) between mobile ISP and device on LAN



Passthrough



Router assigns its mobile WAN IP address to another device on LAN



Wireless

Wireless mode



802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)



Wi-Fi security



WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)



SSID/ESSID



ESSID stealth mode



Wi-Fi users



Up to 150 simultaneous connections



Wireless Connectivity Features



Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)



Wireless MAC filter



Whitelist, blacklist



Wireless QR code generator



Once scanned, a user will automatically enter your network without needing to input login information.



Bluetooth

Bluetooth 4.0



Bluetooth low energy (LE) for short range communication



Ethernet

WAN



1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover



LAN



3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover



Network

Routing



Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing



Network protocols



TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)



VoIP passthrough support



H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets



Connection monitoring



Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection



Firewall



Port forward, traffic rules, custom rules, TTL target customization



Firewall status page



View all your Firewall statistics, rules, and rule counters



Ports management



View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on



Network topology



Visual representation of your network, showing which devices are connected to which other devices



Hotspot



Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes



DHCP



Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards



QoS / Smart Queue Management (SQM)



Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e



DDNS



Supported >25 service providers, others can be configured manually



DNS over HTTPS



DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS



Network backup



Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover



Load balancing



Balance Internet traffic over multiple WAN connections



SSHFS



Possibility to mount remote file system via SSH protocol



VRF support



Initial virtual routing and forwarding (VRF) support



Traffic Management



Real-time monitoring, wireless signal charts, traffic usage history



Security

802.1x



Port-based network access control client



Authentication



Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator



Firewall



Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T



Attack prevention



DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)



VLAN



Port and tag-based VLAN separation



Mobile quota control



Mobile data limit, customizable period, start time, warning limit, phone number



WEB filter



Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only



Access control



Flexible access control of SSH, Web interface, CLI and Telnet



SSL certificate generation



Let's encrypt support



VPN

OpenVPN



Multiple clients and a server can run simultaneously, 27 encryption methods



OpenVPN Encryption



DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,



BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256



IPsec



XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)



GRE



GRE tunnel, GRE tunnel over IPsec support



PPTP, L2TP



Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support



Stunnel



Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code



DMVPN



Method of building scalable IPsec VPNs



SSTP



SSTP client instance support



ZeroTier



ZeroTier VPN client support



WireGuard



WireGuard VPN client and server support



Tinc



Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.



Tailscale



Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol



OPC UA

Supported modes



Client, Server



Supported connection types



TCP



MODBUS

Supported modes



Server, Client



Supported connection types



TCP, USB



Custom registers



MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality



Supported data formats



8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII



DATA TO SERVER

Protocol



HTTP(S), MQTT, Azure MQTT, Kinesis



Data to server



Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature



MQTT Gateway

Modbus MQTT Gateway



Allows sending commands and receiving data from MODBUS Server through MQTT broker



DNP3

Supported modes



Station, Outstation



Supported connection



TCP, USB



DLMS

DLMS Support



DLMS - standard protocol for utility meter data exchange



Supported modes



Client



Supported connection types



TCP, USB



API

Teltonika Networks Web API (beta) support



Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com



Monitoring & Management

WEB UI



HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status



FOTA



Firmware update from server, automatic notification



SSH



SSH (v1, v2)



SMS



SMS status, SMS configuration, send/read SMS via HTTP POST/GET



Call



Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off



TR-069



OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem



MQTT



MQTT Broker, MQTT publisher



SNMP



SNMP (v1, v2, v3), SNMP Trap, Brute force protection



JSON-RPC



Management API over HTTP/HTTPS



RMS



Teltonika Remote Management System (RMS)



IoT Platforms

ThingWorx



Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type



Cumulocity - Cloud of Things



Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions.



Azure IoT Hub



Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs



System Characteristics

CPU



Quad-core ARM Cortex A7, 717 MHz



RAM



256 MB, DDR3



FLASH storage



256 MB, SPI Flash





Firmware / Configuration

WEB UI



Update FW from file, check FW on server, configuration profiles, configuration backup



FOTA



Update FW



RMS



Update FW/configuration for multiple devices at once



Keep settings



Update FW without losing current configuration



Factory settings reset



A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration



FIRMWARE CUSTOMISATION

Operating system



RutOS (OpenWrt based Linux OS)



Supported languages



Busybox shell, Lua, C, C++, and Python, Java in Package manager



Development tools



SDK package with build environment provided



GPL customization



You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs



Package Manager



The Package Manager is a service used to install additional software on the device



Location Tracking

GNSS



GPS, GLONASS, BeiDou, Galileo and QZSS



Coordinates



GNSS coordinates via WebUI, SMS, TAVL, RMS



NMEA



NMEA 0183



NTRIP



NTRIP protocol (Networked Transport of RTCM via Internet Protocol)



Server software



Supported server software TAVL, RMS



Geofencing



Configurable multiple geofence zones



USB

Data rate



USB 2.0



Applications



Samba share, USB-to-serial



External devices



Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter



Storage formats



FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4



Input / Output

Input



1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high



Output



1 x Digital Output, Open collector output, max output 30 V, 300 mA



Events



Email, RMS, SMS



I/O juggler



Allows to set certain I/O conditions to initiate event



Power

Connector



4-pin industrial DC power socket



Input voltage range



9 - 50 VDC, reverse polarity protection, voltage surge/transient protection



24 - 36 VDC for railway version of the code RUTX11 020G00



PoE (passive)



Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC



Power consumption





16 W Max





Physical Interfaces

Ethernet





4 x RJ45 ports, 10/100/1000 Mbps



I/O’s



1 x Digital Input, 1 x Digital Output on 4-pin power connector



Status LEDs





4 x WAN type LEDs, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi



SIM



2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders



Power



1 x 4-pin power connector



Antennas





2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS



USB



1 x USB A port for external devices



Reset



Reboot/User default reset/Factory reset button



Other





1 x Grounding screw



Physical Specification

Casing material



Aluminium housing



Dimensions (W x H x D)





115 x 44.2 x 95.1 mm



Weight





456 g



Mounting options



DIN rail, wall mount, flat surface (all require additional kit)



Operating Environment

Operating temperature



-40 °C to 75 °C



Operating humidity



10% to 90% non-condensing



Ingress Protection Rating



IP30



Regulatory & Type Approvals

Regulatory



CE, UKCA, EAC, UCRF, CITC, ICASA, ANRT, FCC, IC, PTCRB, RCM, IMDA, SIRIM, NTC, E-mark, Railway, UL/CSA Safety, CB



Operator



AT&T, Verizon, T-Mobile, Deutsche Telekom AG



Vehicle





ECE R10 (E-mark)





EMC Emissions & Immunity

Standards



EN 55032:2015 + A11:2020



EN 55035:2017 + A11:2020



EN 301 489-1 V2.2.3



Draft EN 301 489-3 V2.1.2



EN 301 489-17 V3.2.4



Draft EN 301 489-19 V2.2.0



EN 301 489-52 V1.2.1



ESD



EN 61000-4-2:2009



Radiated Immunity



EN IEC 61000-4-3:2006 + A1:2008 + A2:2010



EFT



EN 61000-4-4:2012



Surge Immunity (AC Mains Power Port)



EN 61000-4-5:2014 + A1:2017



Surge immunity (AC Power Line)



EN 61000-4-5:2014 + A1:2017



CS



EN 61000-4-6:2014



DIP



EN 61000-4-11:2004



RF

Standards



EN 301 908-1 V15.1.1



EN 301 908-2 V13.1.1



EN 301 908-13 V13.1.1



EN 300 328 V2.2.2



EN 301 893 V2.1.1



EN 303 413 V1.2.1



EN 300 440 V2.2.1



Safety

Standards



CE: EN 62368-1:2014 + A11:2017, EN IEC 62311:2020, EN 50665:2017



UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019),



CAN/CSA C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)



RCM: AS/NZS 60950.1: 2015



CB: IEC 62368-1:2018
