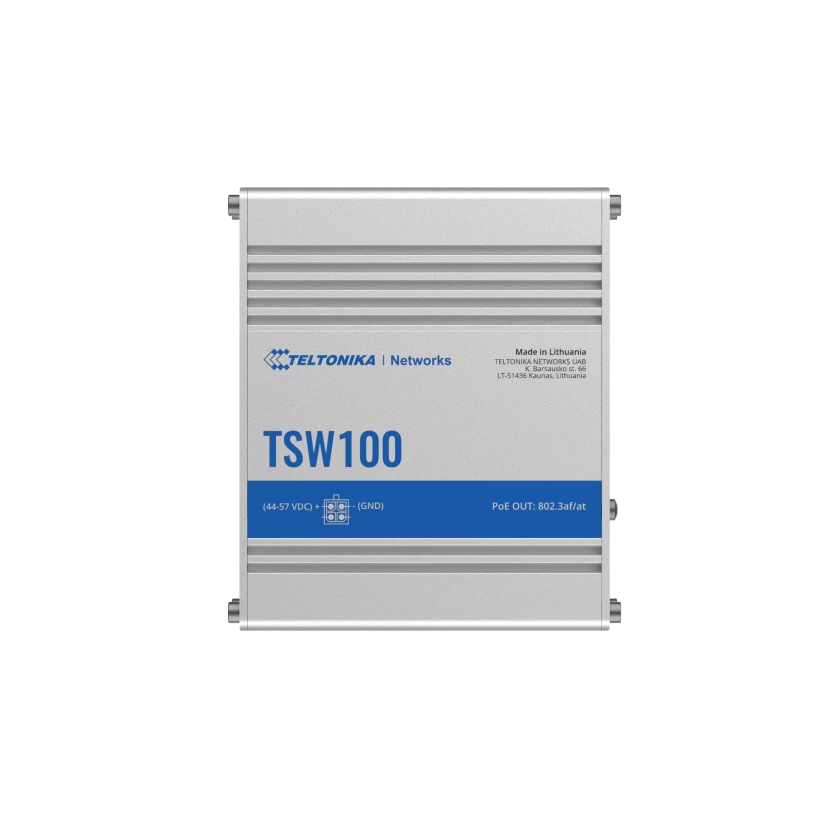

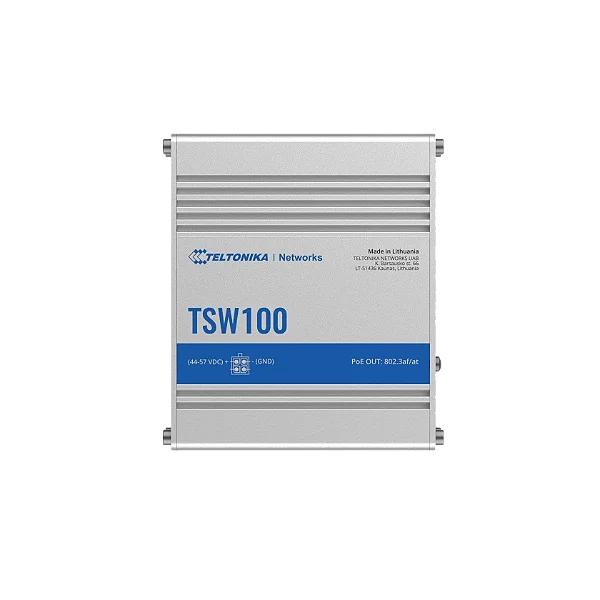

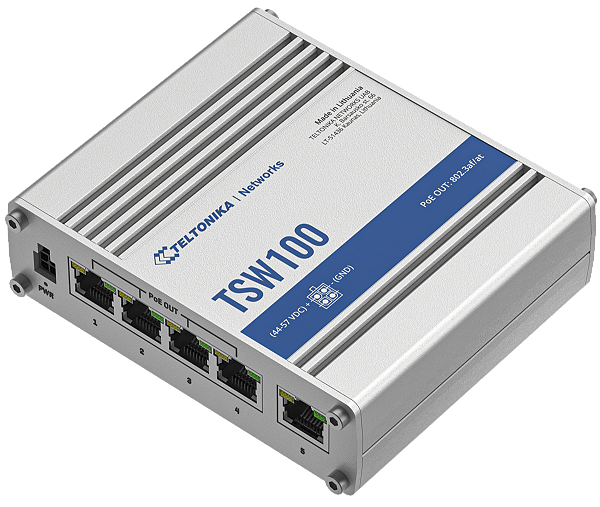

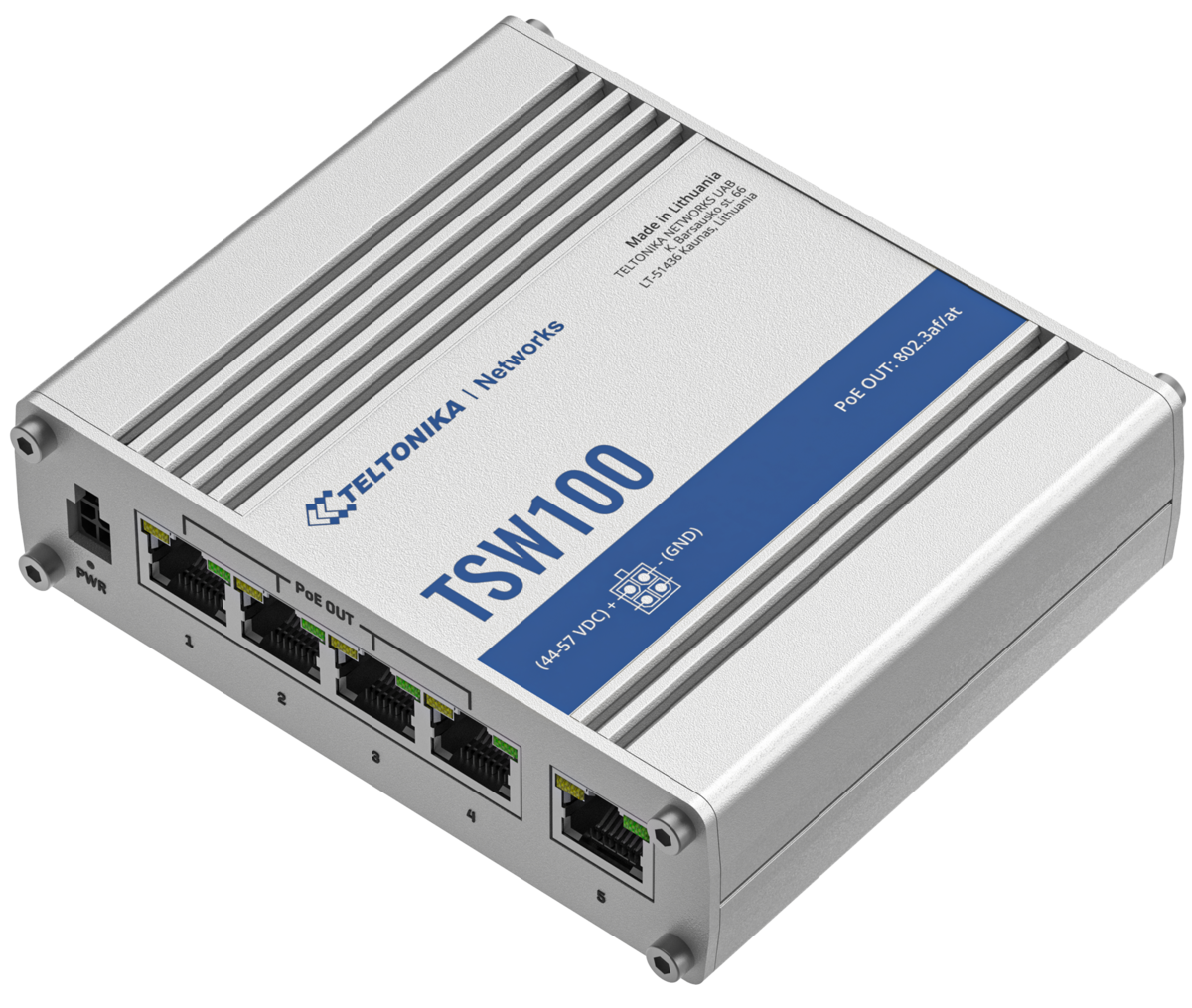

TSW100 Switch Industrial Não Gerenciável 5x Gigabit 4x POE Teltonika
-
- 1x de R$ 809,52 sem juros
- 2x de R$ 404,76 sem juros
- 3x de R$ 269,84 sem juros
- 4x de R$ 212,59
-
R$ 765,00
-
R$ 769,04
Features
Ethernet
ETH
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
POE OUT
PoE ports
Port 1-4
PoE standards
802.3af and 802.3at Alternative B
PoE Max Power per Port (at PSE)
30 W
PoE Power Budget (at PSE)
120 W
Performance Specifications
Bandwidth (Non-blocking)
10 Gbps
Packer buffer
128 KB
MAC address table size
2K entries
Jumbo frame support
9216 bytes
Power
Connector
4-pin industrial DC power socket
Input voltage range
7 – 57 VDC
PoE-out input voltage range
44 – 57 VDC
Power consumption
Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W
Physical Interfaces
Ethernet
5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs
1 x Power LED, 10 x ETH status LEDs
Power
1 x 4-pin power connector
Other
1 x Grounding screw
Physical Specification
Casing material
Full aluminum housing
Dimensions (W x H x D)
115 x 32 x 95 mm
Weight
350 g
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
Regulatory & Type Approvals
Regulatory
CE, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, Anatel, CB, E-mark
EMC Emissions & Immunity
Standards
EN 55032:2015
EN 55035:2017
EN 301 489-1 V2.2.3
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT
EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014
CS
EN 61000-4-6:2014
DIP
EN 61000-4-11:2004
Safety
Standards
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
