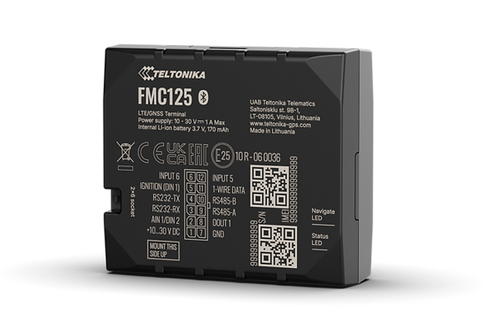

FMC125 Rastreador 4G LTE Cat 1 com interfaces RS232 e RS485 Teltonika
-
- 1x de R$ 1.433,12 sem juros
- 2x de R$ 716,56 sem juros
- 3x de R$ 477,70 sem juros
- 4x de R$ 376,37
- 5x de R$ 304,04
- 6x de R$ 255,84
- 7x de R$ 221,43
-
R$ 1.354,30
-
R$ 1.361,46
ESPECIFICAÇÕES DO PRODUTO
FMC125-MBIB0: MeiG SLM320-E with Teltonika TM2500
Technology : LTE CAT1/GSM/GPRS/GNSS/BLUETOOTH® LE
GNSS : GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver 33 tracking channels
99 acquisition channels
Tracking sensitivity -165 dBM
Position Accuracy < 2.5 m CEP
Velocity Accuracy < 0.1 m/s (within +/- 15% error)
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
Cellular
Technology LTE CAT 1, GSM
2G bands FMC125-MBIB0: GSM: B2/B3/B5/B8
4G LTE bands FMC125-MBIB0: LTE FDD: B1/B3/B7/B8/B20/B28
LTE-TDD:B38/B40/B41
Data transfer LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL)
GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Data support SMS (text/data)
Power
Input voltage range 10 - 30 V DC with overvoltage protection
Internal Back-up battery 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Power consumption At 12V < 4 mA (Ultra Deep Sleep)
At 12V < 6 mA (Deep Sleep)
At 12V < 12 mA (Online Deep Sleep)
At 12V < 19 mA (GPS Sleep)
At 12V < 36 mA (nominal with no load)
At 12V < 1A Max. (with full Load / Peak)
RS485 input voltage range on A or B pin (common-mode voltage) -7V to +12V
RS232 input voltage range (common-mode voltage) +/-15V
RS232 input voltage range (maximum operational voltage) +/-25V
Bluetooth® Technology
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support
Physical specification
Dimensions 65 x 57 x 21 mm (L x W x H)
Weight 61 g
Operating environment
Operating temperature (without battery) -20 °C to +85 °C
Storage temperature (without battery) -20 °C to +85 °C
Operating temperature (with battery) 0 °C to +40 °C
Storage temperature (with battery) -20 °C to +45 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
Interface
Digital Inputs 2
Digital Outputs 1
Analog Inputs 1
CAN Adapter Inputs 1
1-Wire 1
RS232 1
RS485 1
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM Dual SIM
Memory 128MB internal flash memory
Features
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Jamming detection (Jamming detection supported with SLM320-E and SLM320-LA modules)
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Fuel monitoring LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
RS232 Modes Log Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/Binary, Satellite Backup (Iridium Edge)
RS485 Modes Log Mode, NMEA, LLS, TCP ASCII/Binary
Certification & approvals
Regulatory CE-RED, E-mark, Anatel, RCM,CITC, JATE, TELEC, SIRIM QAS, TRC, TRA, SIRA, ICASA, NTC, NBTC
Name FMC125-MBIB0
